HRD 5 axis CNC Machining Capabilities

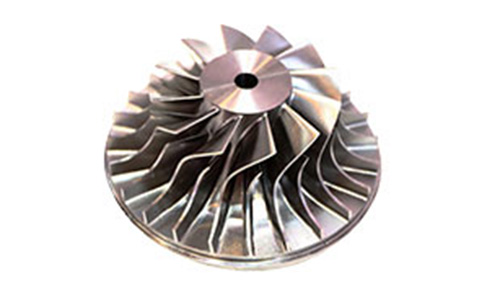

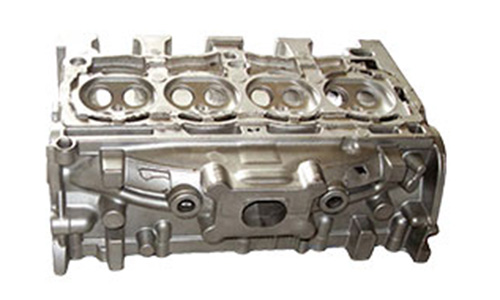

5-axis CNC machining uses a machine tool that can move and rotate on five axes simultaneously to process parts. Its advantages include being highly suitable for manufacturing parts with complex designs and intricate details, precision, speed, and production efficiency.

5-axis machined parts	5-axis machined parts
Comparison of 3-axis, 4-axis, 3+2-axis, and 5-axis CNC machining
3-axis CNC machining Suitable for basic CNC machining operations. Cutting tools can move along three axes (X, Y, Z)	4-axis CNC machining Due to its ability to rotate along a horizontal axis, it is suitable for complex machining. (i.e. increase the rotation axis (A-axis).
3+2-axis CNC machining The cutting tool moves simultaneously on three axes and rotates on two indexing rotation axes. However, switching from three axes to a rotating axis requires constant repositioning.	5-axis CNC machining Cutting tools can move simultaneously along five axes. The 5-axis machine tool will move along three linear axes and two rotational axes.

5 axis cnc machining

5-axis machined parts

5 axis cnc machining

5-axis machined parts

Comparison of 3-axis, 4-axis, 3+2-axis, and 5-axis CNC machining

3-axis CNC machining

Suitable for basic CNC machining operations. Cutting tools can move along three axes (X, Y, Z)

4-axis CNC machining

Due to its ability to rotate along a horizontal axis, it is suitable for complex machining. (i.e. increase the rotation axis (A-axis).

3+2-axis CNC machining

The cutting tool moves simultaneously on three axes and rotates on two indexing rotation axes. However, switching from three axes to a rotating axis requires constant repositioning.

5-axis CNC machining

Cutting tools can move simultaneously along five axes. The 5-axis machine tool will move along three linear axes and two rotational axes.

Advantages of 5-axis CNC machining

5-axis CNC systems are still a good machining choice for many parts manufacturers, as they have the following prominent advantages:

Suitable for complex designs:
The most common reason why component manufacturers choose 5-axis CNC machine tools is that they are suitable for complex machine shapes. The 5-axis machine tool is very fast, and its additional motion allows for machining parts at different angles and radians.
Reduce reinstallation:
5-axis CNC machining does not require segmented manufacturing of parts, which require fixtures. This machine can approach workpieces at different angles with fewer settings
Reduce the cost of each component:
5-axis CNC machining eliminates time and cost as the machine operator does not come into contact with the workpiece; No need to re fix.
Better surface finish:
5-axis machines can achieve better surface finish in a shorter amount of time. You can ensure better surface smoothness by reducing vibration through the use of short cutting tools
Improve accuracy:
5-axis machines have zero or return functions, which can reduce inaccuracies caused by misalignment due to setting changes or removal of parts from the machine.
Faster cutting speed:
The tool length of 5-axis CNC machine tools is relatively short, which can ensure faster cutting speed, reduce tool load, minimize vibration and damage, thereby extending the service life of the tool.
